Main standard: NFPA 13
Automatic sprinkler system
Sprinklers that activate with heat to control the fire at its source, under NFPA 13.
System description
Automatic sprinklers act on their own: each sprinkler opens only when heat reaches it and discharges water over the area where the fire starts. We specialize in installing sprinkler systems in accordance with NFPA 13.
Sprinkler system design starts from the building’s hazard classification and the type of storage; that information defines the sprinkler layout and the piping calculations in accordance with the standard.
Depending on the conditions of the building, the system can be wet pipe, with water in the piping at all times, or dry pipe, preaction, or deluge, in which water waits behind a valve until the system activates.
The photos on this page show our crew’s work: on-site pipe grooving, overhead piping installation from an aerial lift, and completed piping under the roof.
Main components
- Automatic sprinklers
- Steel pipe and fittings
- Control valves
- System valve station
- Waterflow switch and alarm
- Fire department connection
- Pipe hangers and supports
Completed work
Gallery
FIG. 02 — ON-SITE GROOVING
FIG. 03 — OVERHEAD INSTALLATION
FIG. 04 — INSTALLED PIPING

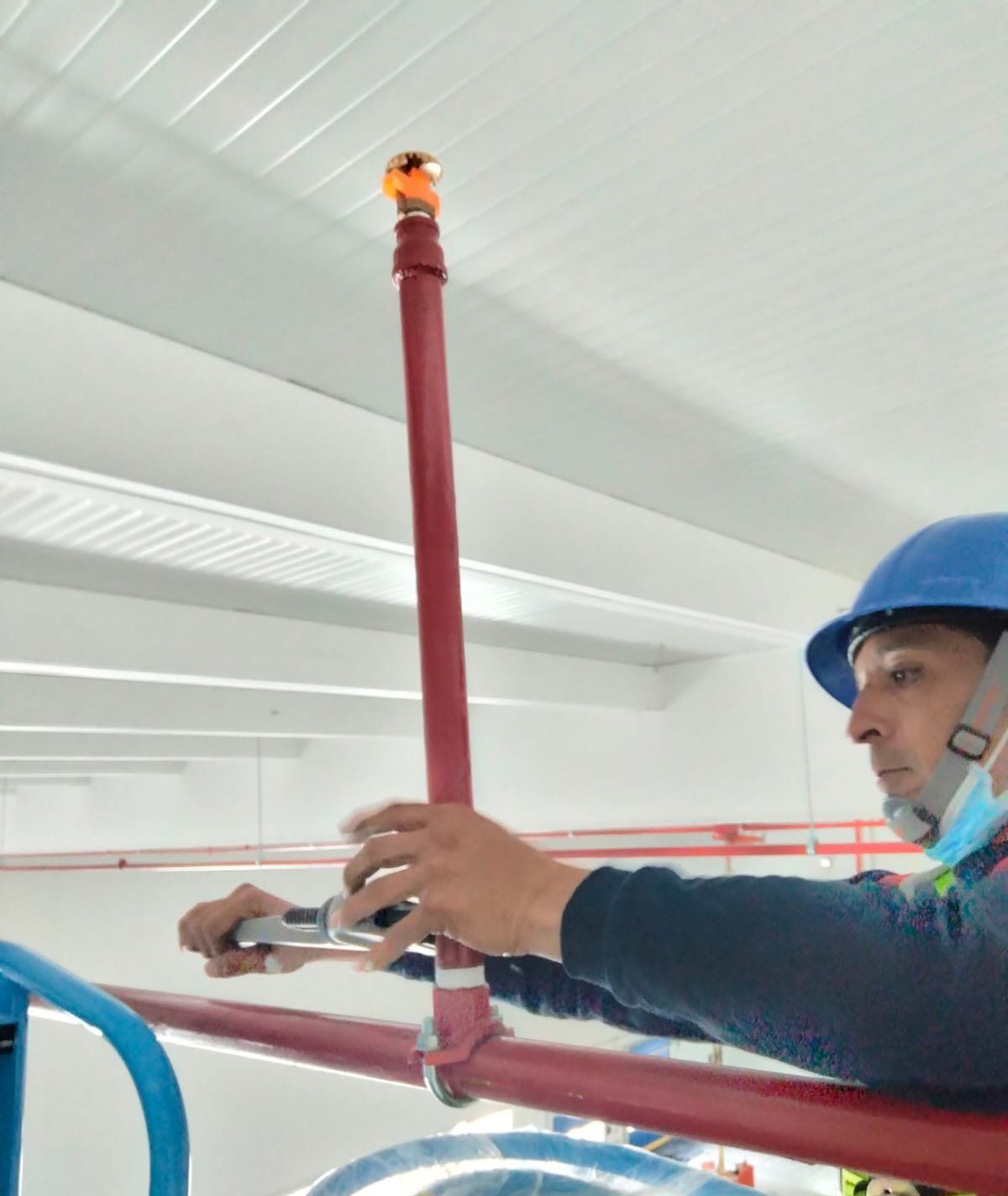

FIG. 05 — WORK AT HEIGHT

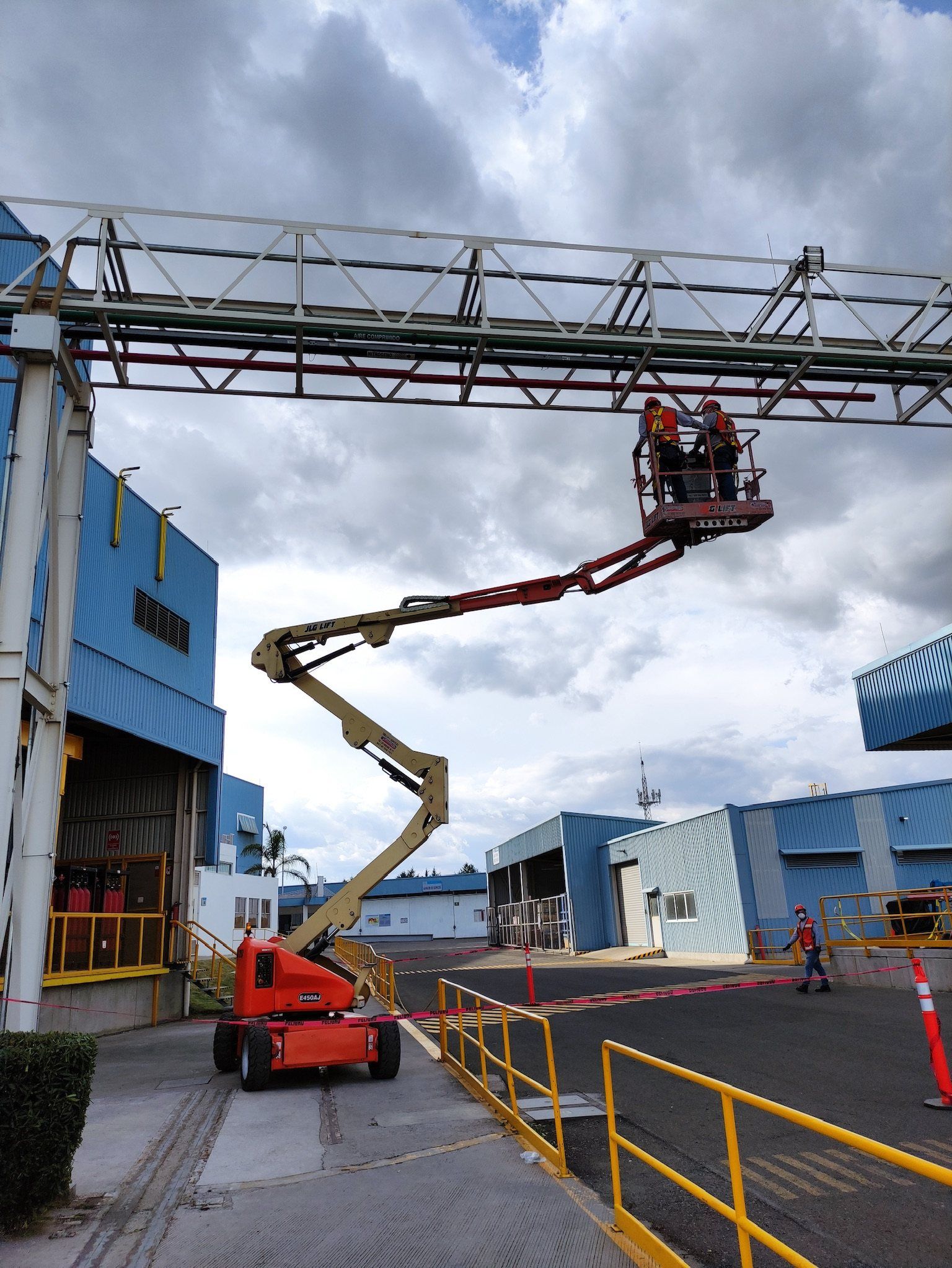

FIG. 06 — OUTDOOR PIPE RUN
Service lines
Services for this system
Design and installation
Fire protection engineering, design, and installation under NFPA, FM Global, and STPS standards.
Maintenance
Preventive and corrective maintenance to ensure the continuous operation of the systems.
Consulting
Expert advice and professional diagnostics for fixed fire protection systems.
Performance testing
Tests and diagnostics that validate the correct operation of the system in an emergency.
